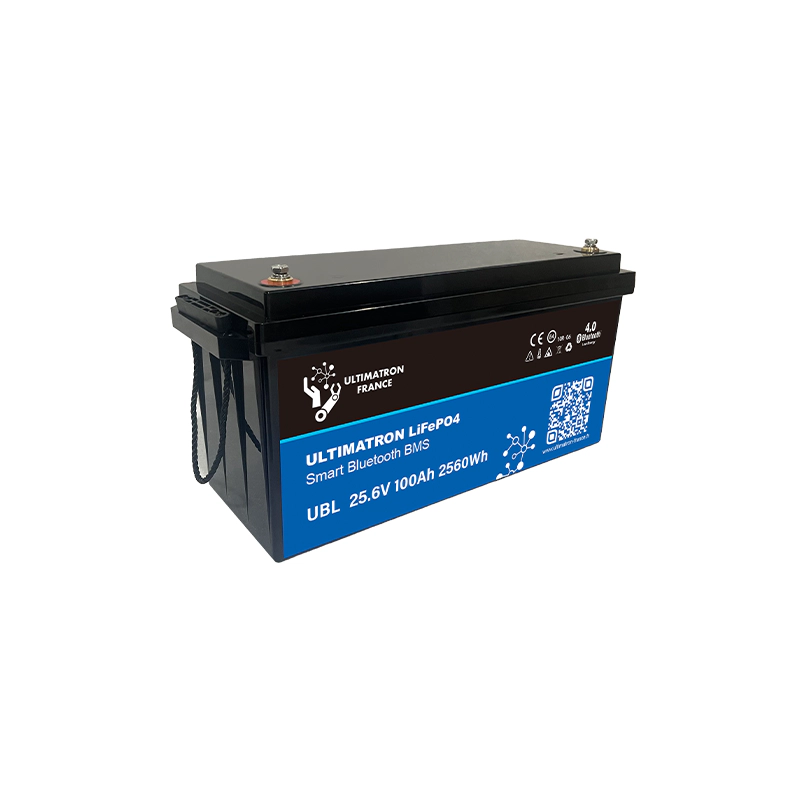

Ultimatron Lithium Battery 25.6V 100Ah PRO 2560Wh LiFePO4 Smart BMS With Bluetooth
Original price was: 780,00€.680,00€Η τρέχουσα τιμή είναι: 680,00€.
– 5-year manufacturer warranty
– The safest technology , without risk of fire or explosion
– A long lifespan
– Constantly improving storage
– High stability even under extreme loads
– No memory effect , no need for full charge and discharge cycles
– High performance even if extreme conditions
– Deep and regular discharge and discharge efficiency
– Small size and light weight
Διαθέσιμο κατόπιν παραγγελίας
Technical sheet
Nominal voltage 25.6 V
Nominal capacity 100 Ah
Capacity @ 20A 300 min
Energy 2560 Wh
Resistance ≤15 mΩ @ 50% SOC
Self-discharge <3% / Month
Number of cycles >6000@80% DoD
Recommended charging current 30 A
Maximum charging current 50 A
Recommended charging voltage 29.2 V
Charge cut-off voltage 29.2 V (2000 ms)
Reconnection voltage ≤27.6 V
Equilibrium voltage >25.6 V
Maximum continuous discharge current 100 A
Peak discharge cut-off current 300 A (200~500ms)
Discharge cut-off voltage 20 V (2000 ms)
Reconnection voltage >22.4 V
Short circuit protection 1000-2000A ±400A
（200~800μs）
Discharge temperature -20 ~ 75 ºC
Charging temperature 0 ~ 50 ºC
Storage temperature -5 ~ 35 ºC
Dimensions L502 * W186 * H243 mm
Weight 19.1 kg
Connection screw M8
Torque terminals 80 ~ 100 in-lbs (9 ~ 11 Nm)
Material Box ABS
International Protection Code IP65
Bluetooth Bluetooth 4.0 with
smartphone app
Certifications CE
UN38.3
UL1642 & IEC62133
Shipping classification UN 3480, CLASS 9
