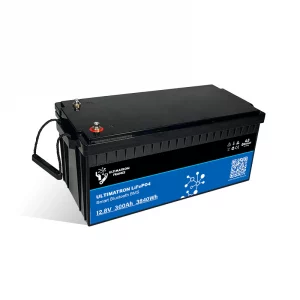

Ultimatron Lithium Battery 12.8V 300Ah PRO 3840Wh LiFePO4 Smart BMS With Bluetooth
Original price was: 1.435,00€.1.250,00€Η τρέχουσα τιμή είναι: 1.250,00€.
Our lithium iron phosphate (LiFePO4) batteries offer many advantages over traditional batteries:
– 5-year manufacturer warranty
– The safest technology, without risk of fire or explosion
– A long lifespan
– Constantly improving storage capacity
– High stability even under extreme loads
– No memory effect, no need for full charge and discharge cycles
– High performance even if extreme conditions
– Deep and regular discharge and charge efficiency
– Small size and light weight
Διαθέσιμο
Technical sheet
Nominal voltage 12.8 V
Nominal capacity 300 Ah
Capacity @ 40A 450 min
Energy 3840 Wh
Resistance ≤15 mΩ @ 50% SOC
Self-discharge <3% / Month
Number of cycles >6000@80% DoD
Recommended charging current 90 A
Maximum charging current 150 A
Recommended charging voltage 14.6 V
Charge cut-off voltage 14.6 V (2000 ms)
Reconnection voltage ≤13.8 V
Equilibrium voltage >12.8 V
Maximum continuous discharge current 200 A
Peak discharge cut-off current 600 A (200~500ms)
Discharge cut-off voltage 10 V (2000 ms)
Reconnection voltage >11.2 V
Short circuit protection 1000-2000A ±400A
（200~800μs）
Discharge temperature -20 ~ 75 ºC
Charging temperature 0 ~ 50 ºC
Storage temperature -5 ~ 35 ºC
Dimensions L522* W240 * H218mm
Weight 28.25 kg
Connection screw M8
Torque terminals 80 ~ 100 in-lbs (9 ~ 11 Nm)
Material Box ABS
International Protection Code IP65
Bluetooth Bluetooth 4.0 with
smartphone app
Certifications CE
UN38.3
UL1642 & IEC62133
Shipping Classification UN 3480, CLASS 9
