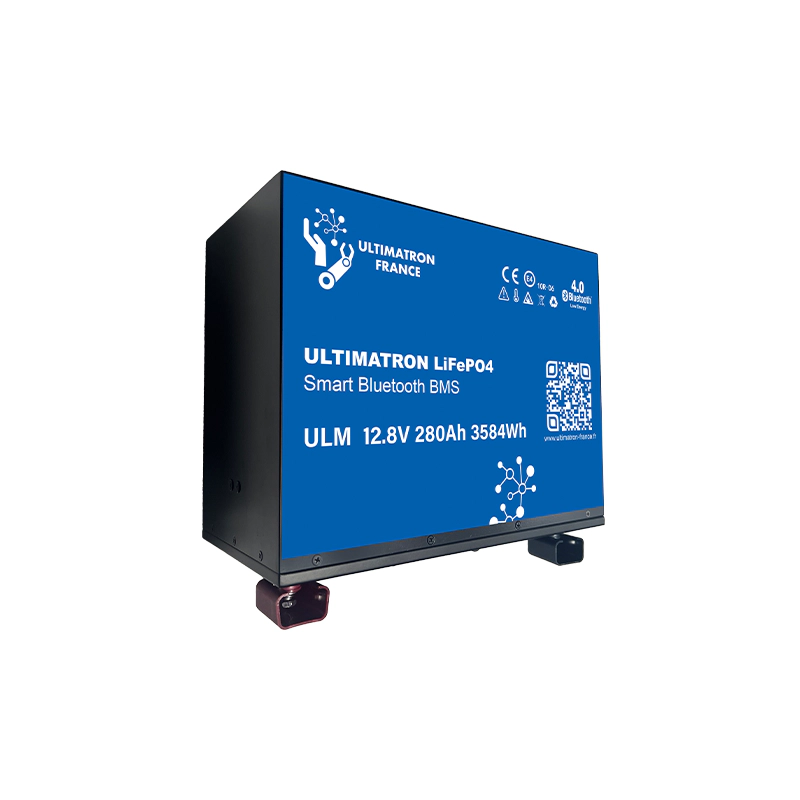

Ultimatron 12.8V 280Ah LiFePO4 Smart BMS Under Seat Lithium Battery With Bluetooth & Heater
Original price was: 1.800,00€.1.400,00€Η τρέχουσα τιμή είναι: 1.400,00€.
Nominal voltage 12.8 V
Nominal capacity 280 Ah
Capacity @ 40A 420 min
Energy 3584 Wh
Resistance ≤15 mΩ @ 50% SOC
Self-discharge <3% / Month
Number of cycles >6000 @80% DoD
Recommended charging current 80 A
Maximum charging current 140 A
Recommended charging voltage 14.6 V
Charge cut-off voltage 14.6 V (2000 ms)
Reconnection voltage ≤13.8 V
Equilibrium voltage >12.8 V
Maximum continuous discharge current 200 A
Peak discharge cut-off current 600 A (200~500ms)
Discharge cut-off voltage 10 V (2000 ms)
Reconnection voltage >11.2 V
Short circuit protection 1000-2000A ±400A
（200~800μs）
Discharge temperature -20 ~ 75 ºC
Charging temperature 0 ~ 50 ºC
Storage temperature -5 ~ 35 ºC
Dimensions L355 * W330 * H190mm
Weight 31 kg
Connection screw M8
Torque terminals 80 ~ 100 in-lbs (9 ~ 11 Nm)
Bluetooth Bluetooth 4.0 with
smartphone app
Material Box Metal
International Protection Code IP65
Certifications CE
UN38.3
UL1642 & IEC62133
Shipping Classification UN 3480, class 9
Διαθέσιμο κατόπιν παραγγελίας
5-year manufacturer's warranty The safest technology, without risk of fire or explosion
Long lifespan
Constant improvement in storage capacity
High stability even under extreme loads
No memory effect, no need for complete charge and discharge cycles
High performance even in extreme conditions
Deep, consistent discharge and charging efficiency
Small size and light weight
