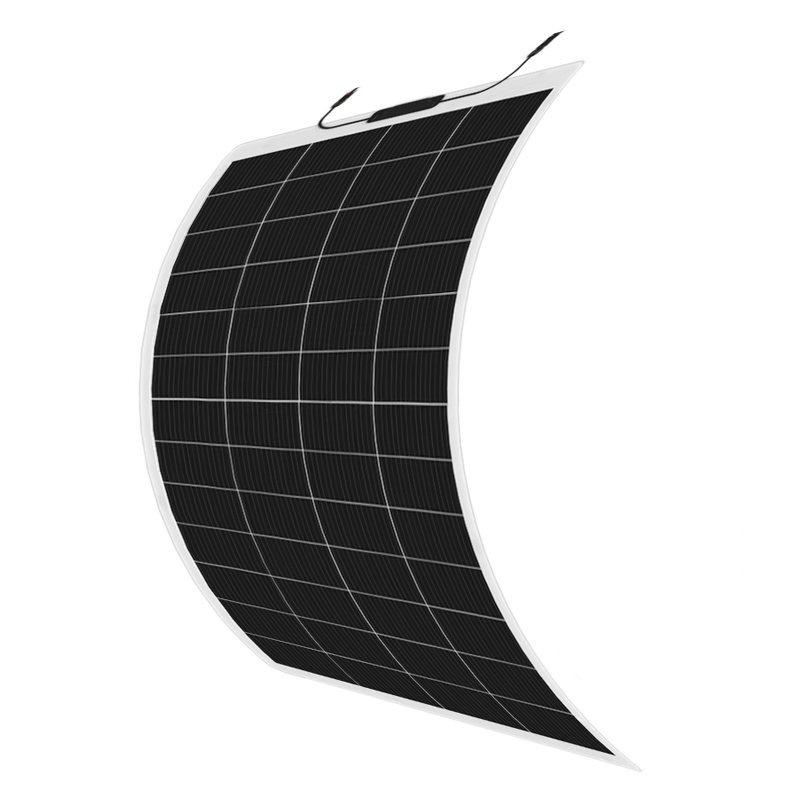

TOPCon-N-200W (1280*780*2mm) CPC Semi-Flexible Solar Panel
Nominal Power 200W
Maximum Power Current 6.64A
Maximum Power Voltage 30.16V
Open-circuit Voltage 35.36V
Short-circuit Current 7.03A
Maximum System Voltage 200V
Output Tolerance 0~+3%
Cable (MC4) 900mm / 2.5mm²
Module Structure CPC / EVA / Backsheet
Junction box rating ≥IP67
Cell 182*91–13*4
Working Temperature -20℃~+65℃
Module Dimensions 1280*780*2mm
Weight(Net /Gross) 4.2/6.5
Maximum Power Current 6.64A
Maximum Power Voltage 30.16V
Open-circuit Voltage 35.36V
Short-circuit Current 7.03A
Maximum System Voltage 200V
Output Tolerance 0~+3%
Cable (MC4) 900mm / 2.5mm²
Module Structure CPC / EVA / Backsheet
Junction box rating ≥IP67
Cell 182*91–13*4
Working Temperature -20℃~+65℃
Module Dimensions 1280*780*2mm
Weight(Net /Gross) 4.2/6.5
3
βλέπουν το προϊόν αυτό τώρα!
Κωδικός προϊόντος:
kit-100w-semiflex
Κατηγορία: SEMI-FLEXIBLE SOLAR
Περιγραφή
Lightweight solar modules have better power generation efficiency and longer service life than traditional flexible modules.
The CPC material used on the surface has good weather resistance and high light transmittance, and its performance is better than that of ETFE material.
Composite material integration, compared with traditional flexible panels, has better protection for solar cells. Sturdy materials and stable workmanship make it possible to walk on the panels.
It is so lightweight that it is easy to carry and install. It is suitable for a variety of application scenarios.
Σχετικά
Επιπλέον πληροφορίες
Βάρος | 1,1 κ. |
---|---|
Διαστάσεις | 668 × 834 cm |
