- 【MPPT TECHNOLOGY】 – Precise maximum power point tracking. MPPT algorithm can optimize the power collection from solar panels. It accurately captures and collects sunlight, and locks in the maximum output power points, significantly increasing over 25% of the power generation. With the monitoring system, it can help you monitor the power generation efficiency of the power station and reduce workforce expenses.
- 【HIGH PERFORMANCE】 – Reverse power transmission. With efficient reverse power transmission technology, the power transmission rate up to 99.9%. Full digital control can be achieved by using intelligent soft switching technology and built-in MCU for charging modules; Introducing high-frequency switching power supply and SPWM control technology. It features strong anti-interference ability, fast calculation speed, a high degree of intelligence, high control precision, and excellent output waveform.
BTM-600 MICRO INVERTER
200,00€
-
Recommended input power: 600W
-
Recommend the use of PV modules: 2 x 300W, 30-50VOC
-
Maximum input DC voltage: 54V
-
Peak power tracking voltage: 25-40V
-
Operating voltage range: 17-50V
-
Min/Max start voltage: 22-50V
-
Maximum DC short current: 40A
-
Maximum input current: 27.2A
-
Output power: 220VAC
-
Peak power output: 600W
-
Rated output power: 550W
-
Rated output current: 2.39A
-
Rated voltage range: 180-260VAC
-
Rated frequency range: 47-52.5 Hz
-
Power factor: >99%
-
Maximum units per branch circuit: 12pcs (Single-phase)
-
Static MPPT efficiency: 99.5%
-
Maximum output efficiency: 92.5%
-
Nighttime power consumption: <1W
-
THD: <5%
-
Ambient temperature: -40~+60 ℃
-
Operating temperature range(inverter inside) : -40~+82 ℃
-

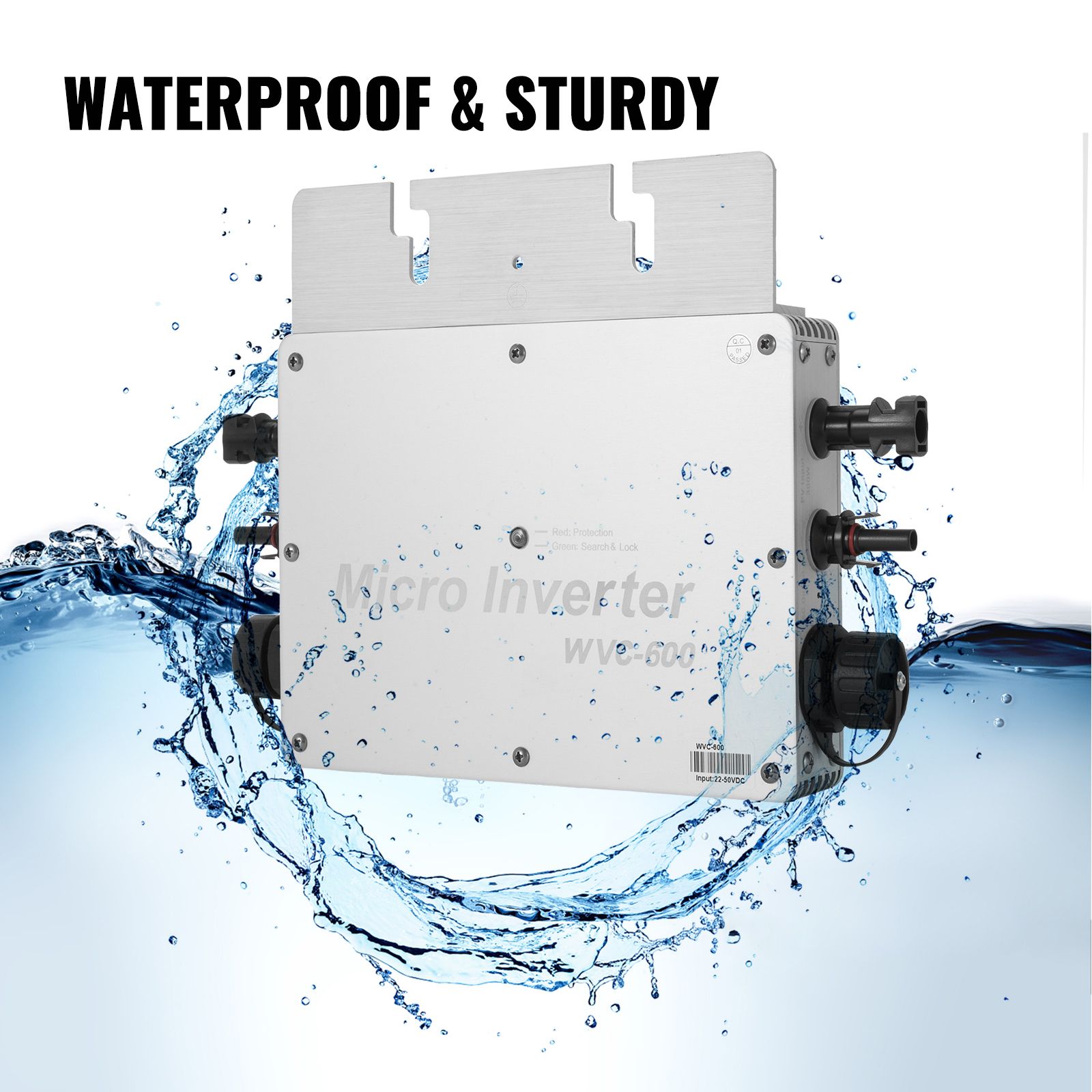

Waterproof rating: IP65
-
Cooling: Self-cooling
Διαθέσιμο κατόπιν παραγγελίας
9
βλέπουν το προϊόν αυτό τώρα!
Περιγραφή
Επιπλέον πληροφορίες
| Βάρος | 2 κ. |
|---|---|
| Διαστάσεις | 1350 × 660 × 2 cm |
