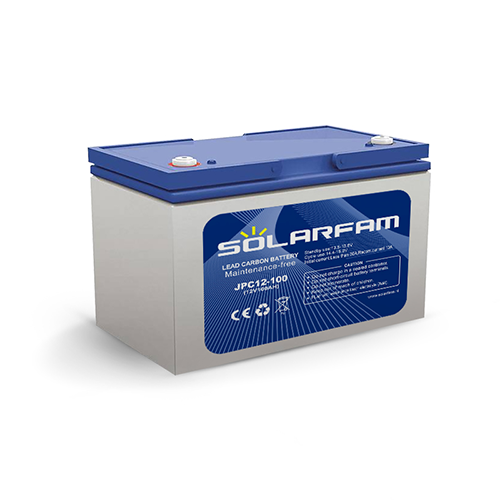

Battery Type Lead-carbon
Nominal Voltage 12V
Nominal Capacity 100Ah
Design life 15 years
Terminal M8
Approx. Weight Approx 32.5kg (71.65lbs)
Container Material ABS
Rated Capacity 100Ah 10Hour Rate (10.0A to 10.8V)
81.3Ah 3Hour Rate (27.1A to 10.8V)
66.1Ah 1Hour Rate (66.1A to 10.5V)
Internal resistance Full charged at 25˚C: 4.8 mΩ
Max. Discharge Current 1200A(5S)
Operating Temperature Discharge: -40 ~60℃(-40~ 140˚F)
Charge : -20 ~50℃(-4~ 122˚F)
Storage: -20 ~50℃(-4~ 122˚F)
Charge Method (25 ˚C) Charge current: Max.50A；Recom.10~20A
Float Charge voltage(-3mV/℃）:
13.5-13.8V,recom.13.5V(Full floating system) 13.5-13.8V,recom.13.62V(Cycle use system)
Equalize charge:13.8-14.1V,recom.14.1V(-4mV/ ˚C)
Cycle charge:14.4-15.0V,recom.14.4V(-5mV/ ˚C)
Self discharge 3% of capacity declined per month at 25˚C
