Nominal Power 20W
Maximum Power Current 1.11A
Maximum Power Voltage 18.15V
Open-circuit Voltage 21.75V
Short-circuit Current 1.17A
Maximum System Voltage 500V
Output Tolerance 0~+3%
Cable (MC4) 700mm / 2.5mm²
Module Structure Aluminum Frame / Glass / EVA /Backsheet
Junction box rating ≥IP67
Cell 105*28.2–16*2
Working Temperature -40~+80℃
Module Dimensions 480*240*25mm
Weight(Net /Gross) 1.4/1.6kg

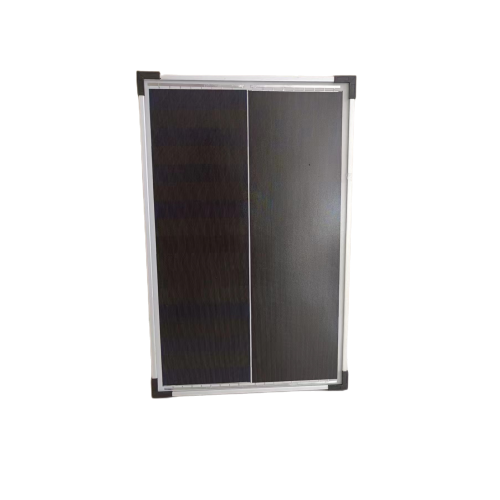

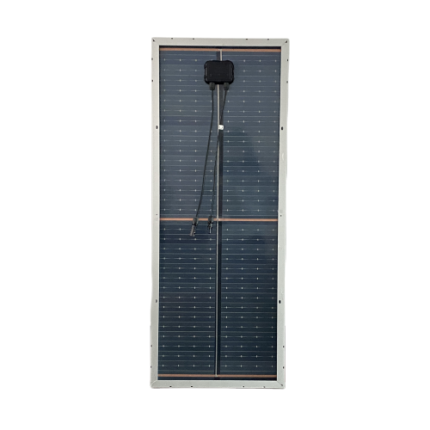

20W Mono Rigid Solar Panel
Advantages:
- The efficiency of high-quality and high-efficiency monocrystalline silicon wafers can reach 22%.
- Using tempered glass, high transparency.
- Anti-corrosion EVA effectively protects the battery panel.
- Strong and anti-wind and snow, unique technology to avoid freezing of water in the frame and deformation.
- Lightweight and flexible features can make it seamlessly integrated into your vehicle.
- Packed in a single carton, with protective corners on all four corners.
- OEM and ODM supported.
8
βλέπουν το προϊόν αυτό τώρα!
Κωδικός προϊόντος:
SZ-20-S
Κατηγορία: RIGID SOLAR PANELS 12V
Περιγραφή
Σχετικά προϊόντα

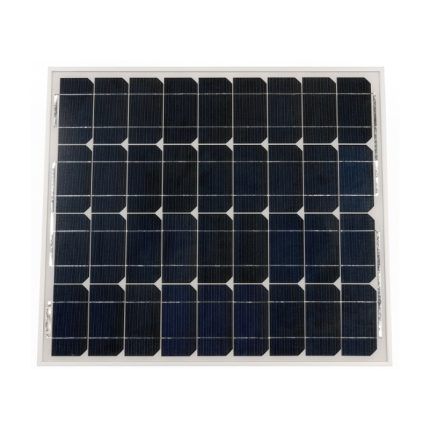

Φωτοβολταϊκό Πάνελ VICTRON BlueSolar 20W Μονοκρυσταλλικό
