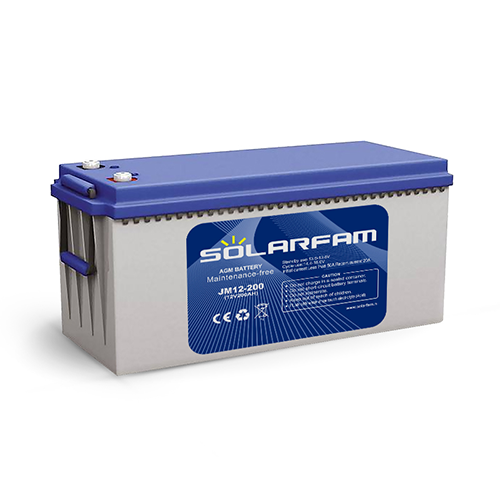

Battery Type AGM
Nominal Voltage 12V
Nominal Capacity 200Ah
Design life 10 years
Terminal M8
Approx. Weight Approx 57.0kg (126lbs)
Container Material ABS
Rated Capacity 200Ah 10Hour Rate (20.0A to 10.8V)
161Ah 3Hour Rate 161Ah (53.7A to 10.8V)
131Ah 1Hour Rate 131Ah (131A to 10.5V)
Internal resistance Full charged at 25˚C: 3.0 mΩ
Max. Discharge Current 2400A(5S)
Operating Temperature Discharge: -20 ~50℃(-4~ 122˚F)
Charge : -20 ~50℃(-4~ 122˚F)
Storage: -20 ~50℃(-4~ 122˚F)
Charge Method (25 ˚C) Charge current: Max.50A；Recom.20A
Float Charge voltage(-3mV/℃）:
13.5-13.8V,recom.13.5V(Full floating system)
13.5-13.8V,recom.13.62V(Cycle use system)
Equalize charge:13.8-14.1V,recom.14.1V(-4mV/ ˚C)
Cycle charge:14.4-15.0V,recom.14.4V(-5mV/ ˚C)
Self discharge 3% of capacity declined per month at 25˚C
