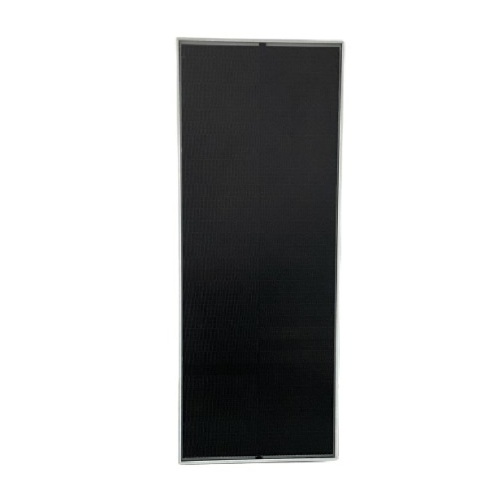

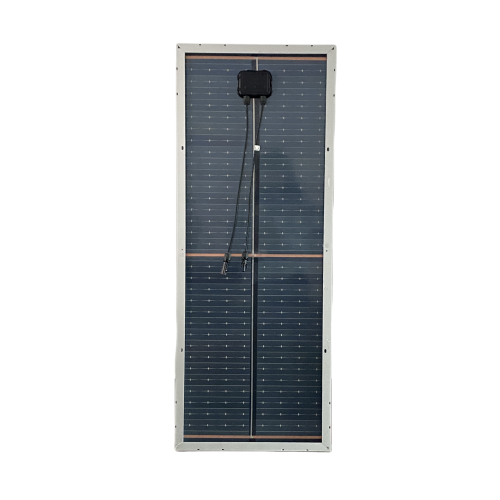

100W (1160*450*30mm) Double-sided Solar panel
Nominal Power 100W
Maximum Power Current 5.19A
Maximum Power Voltage 19.28V
Open-circuit Voltage 22.92V
Short-circuit Current 5.50A
Maximum System Voltage 500V
Output Tolerance 0~+3%
Cable （MC4） 700mm / 2.5mm²
Module Structure Aluminum Frame / Glass / EVA /Backsheet
Junction box rating ≥IP67
Cell 210*33.2–34*2
Working Temperature -40~+80℃
Module Dimensions 1160*450*30mm
Weight（Net /Gross） 5.75/6.5kg
Advantages:
1. The efficiency of high-quality and high-efficiency monocrystalline silicon wafers can reach 22%.
2. Double-sided solar panels greatly increase the power of the components.
3. Using tempered glass, high transparency.
4. Anti-corrosion EVA effectively protects the battery panel.
5. Strong and anti-wind and snow, unique technology to avoid freezing of water in the frame and deformation.
6. Lightweight and flexible features can make it seamlessly integrated into your vehicle.
7. Packed in a single carton, with protective corners on all four corners.
8. OEM and ODM supported.
